Hydraulic Support Cylinders

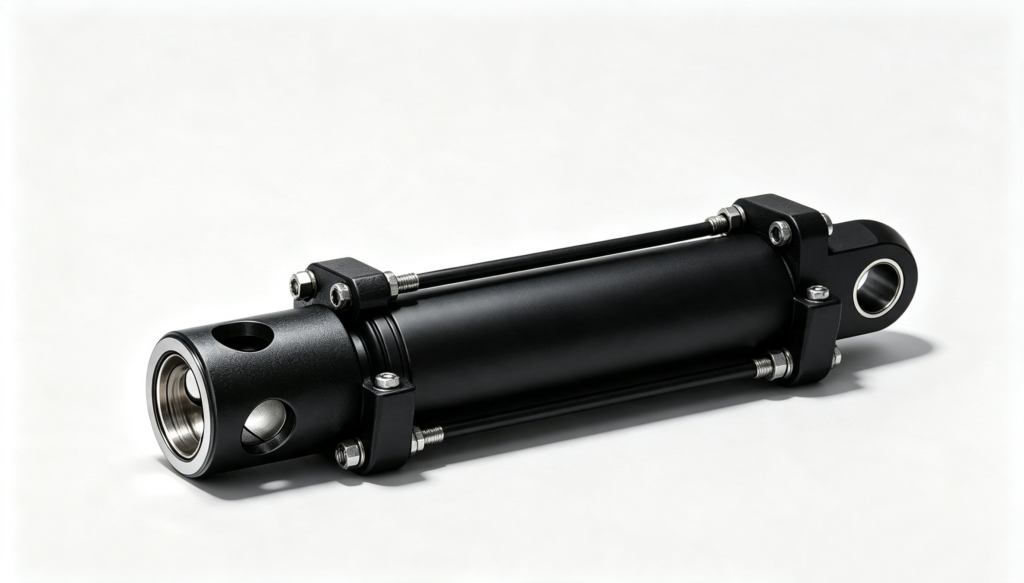

We supply heavy‑duty hydraulic support cylinders for underground coal mining equipment. Widely used on hydraulic roof supports in underground mining working faces. High‑strength cylinder tube, wear‑resistant piston rod and dust‑proof, anti‑corrosion sealing kits ensure long‑time stable operation under high‑pressure, dusty underground mine conditions. OEM & ODM customization is available according to customer drawings. Every cylinder will pass strict pressure testing before shipment.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Parameters
| Main Item | Specification | Unit | Matching Scope | |
|---|---|---|---|---|
| Bore Diameter | 63-250 | mm | Hydraulic Supports for Coal Mine | |
| Rod Diameter | 45-160 | mm | ||
| Stroke | 170-900 | mm | ||
| Working Pressure | 31.5-42.0 | MPa | ||
| Output Force | Thrust | 90-1500 | KN | |
| Pull Force | 50-900 | KN | ||
| Operating Temperature | -40 - 100 | ℃ | ||
Application Scope of Underground Hydraulic Support Cylinders
1. Classification & Detailed Application of Each Cylinder
1. Column Cylinders

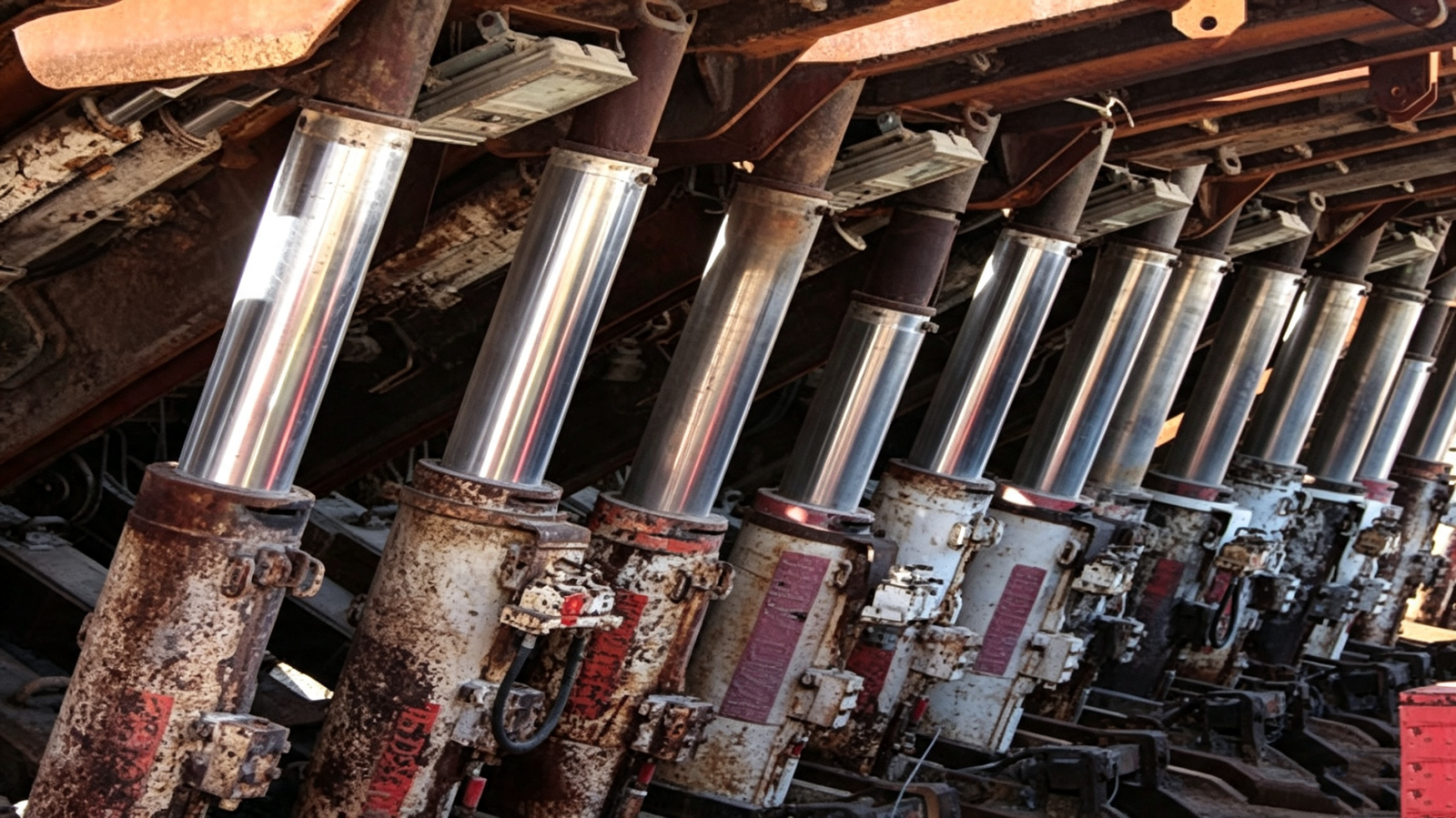

Core load-bearing part of the hydraulic support. It bears the massive pressure from overlying strata, supports the working face roof to avoid collapse, lifts the whole support and resists dynamic underground rock pressure.
2. Push Jack Cylinders
Realize step-by-step advancement of the support and scraper conveyor. Push the support forward following coal cutting progress and pull the conveyor toward the coal wall for continuous coal transportation.
3. Side Guard Cylinders
Drive side guard plates to seal gaps between adjacent supports to block falling gangue, and prevent the support from tilting under unbalanced ground pressure.
4. Face Guard Cylinders
Extend the guard baffle to hold the coal wall, effectively stop coal wall spalling and falling lumps, safeguard underground personnel and equipment.
5. Angle Adjustment & Leveling Cylinders
Adjust the angle of top beam and shield beam to adapt irregular roof, and level the support base on uneven underground floor.
2. General Application Fields

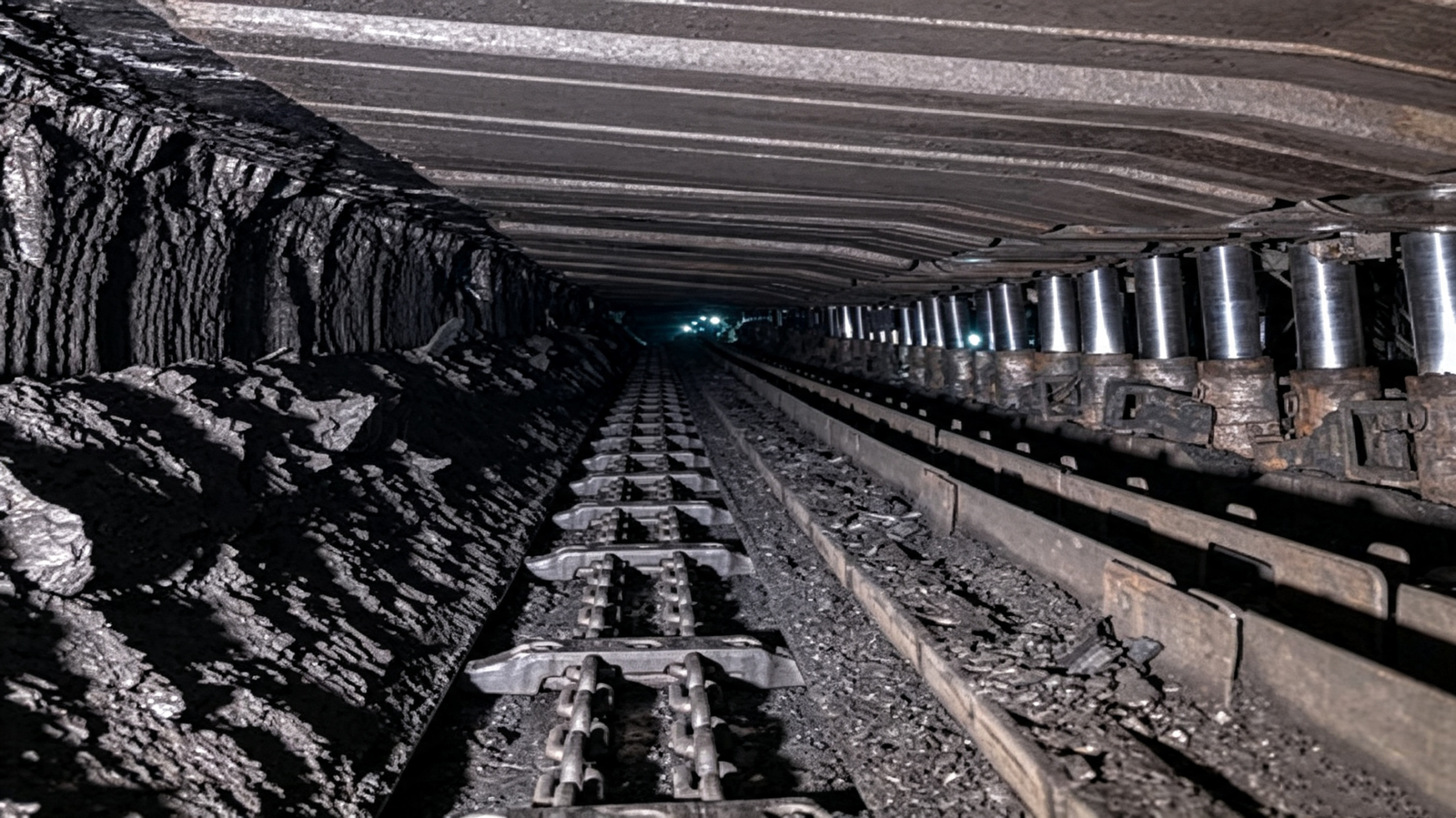

- Fully mechanized longwall mining working faces in underground coal mines (primary application)
- Temporary roof support for underground tunneling roadways
- Surrounding rock support for metal mine underground tunnels
- Underground cavern and water conservancy tunnel reinforcement projects
Brief Product Introduction
Hydraulic support cylinders are critical hydraulic actuators for underground mining powered supports. They perform roof load bearing, support propulsion, coal wall protection, anti-offset and surrounding rock stabilization functions, extensively used for underground coal mine fully mechanized mining faces and other underground excavation support engineering.
